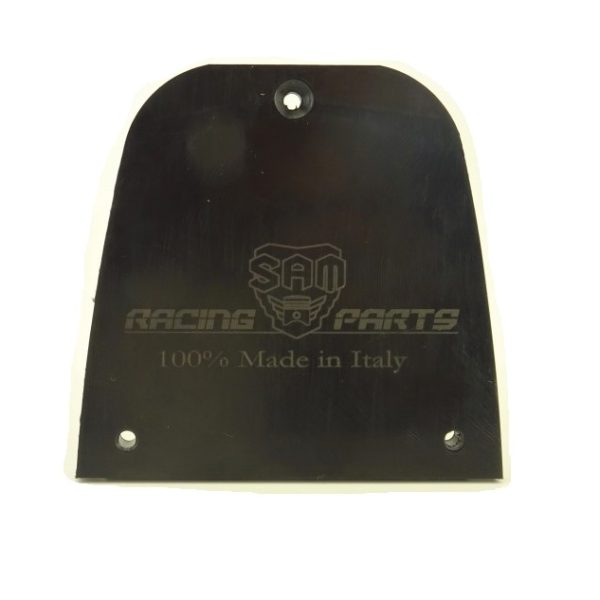

| Content | SAM Racing Parts: Spark Plug Protection Guard For 2-Strokes.
A small but ingenious addition, pioneered by TM UK over a decade ago in our inclement climate!, that covers the 'open' area where the chassis rails run from downward the headstock main spar, above the exhaust pipe exit.
This 'open' area can allow excess mud and water, that is projected from the rotating front wheel, to accumulate around the engines cylinder head and spark plug. This accumulation of mud and water not only encases the cylinder creating heat, but also could lead to electrical short or miss-fire from a saturated spark plug / plug cap. The protection guard deflects this possible ingress of mud and water form the front wheel, therefore keeping your cylinder head cleaner and reducing the chance of bad running or plug failure.
Machined from nylon the guard is strong and durable and can be mounted by zip-ties only - around the chassis rails - and/or the top mounting hole can be used as a secure screw fixing if you drill & tap the chassis' main centre spar - using caution.
Can be used on all aluminum chassis' 2-stroke models 2008>2021
Part No' SAM-SPARKGUARD-399 | BZERK seat support available for TM Racing 2-Stroke (125cc/144cc/250cc/300cc) models from 2015>2021 featuring the 'Fresh-Air' Intake System.
This seat support bracket rivets to the original plastic seat base (seat cover removed first) to strengthen and support the seat, to reduce 'compression' of the seat itself and the resulting 'widening' of the seat on the corner areas.
The BZERK seat support has been designed to reduce the flex in the seat base under certain loads, loads that can deform the shape and structure of the seat. The deformation of the seat base - where the 'Fresh-Air' intake system channel resides on the 2-stroke - can allow the sides of the seat to be exposed from the confines of the body panels. This exposure occurs where the radiator panel and side number panel area meet and the aesthetic angle is changed on the seat itself to mirror the contours of the bodywork - the seat 'widens' under deformation, thus causing snagging and damage to seat covers in the 'corner' area by boots tops and knee braces.
This seat support bracket is made from aluminium and comes with rivets for fitting. Featuring a padded support leg that disperses the loading across the fuel tank, whilst retaining full function of the 'Fresh Air' intake system, this simple yet effective part will reduce unwanted flex and deformation helping to keep your seat covers looking better, for longer.
See the images of the BZERK seat support to understand how it works.
AVAILABLE IN NATURAL ALUMINIUM COLOUR ONLY.
BZERK:SEAT-BR.2T.M15> | SAM Racing Parts Caliper Holder, fits all 2015> Adult / full sized machines.
This CNC machined caliper holder is designed to hold the caliper in place, on its location perch, during rear wheel removal and re-fitting. An especially useful addition on endurance type events where quick wheel changes are paramount and time wasted trying to re-locate the caliper could be costly. This part replaces the removal axle block. Used by the TM Racing Factory Teams.
Supplied with fitting bolt.
Part No' SAM-CALHOL-15>-393 | TM Racing genuine Start Device for KYB 48mm and Marzocchi 50mm forks.
Lift Control device for forks fitted to TM Racing machines, CNC machined from billet aluminium and colour finished.
Comes with fork leg engagement ring, fork guard spring-loaded lock/return button, a set of fork guard 'strengthening' plates and all fittings.
TM Part No': 72111 | Footrest Dirt-Deflectors for TM Racing Models 2008>2021 .
Designed by TM UK's long-standing Enduro rider, Josh Gotts and produced by Lasermaster, these dirt-deflectors are laser-cut from stainless steel to ensure the best longevity.
This simple, yet effective product is designed to reduce the chances of dirt and small stones being forced into the space left by a lifting footrest, for example, when laying the bike into a turn where the footrest could be pushed upwards, thus leaving itself exposed to the ingress of mud and small stones that could jam the footrest in the upper position and hinder it return to the resting position. These dirt-deflectors not only reduce the chance of a footrest sticking, but also keep the footrest open to allow other particles to escape and keep the workings visible for lubrication and maintenance, something 'enclosed' gators do not allow.
The dirt-deflectors are designed to fit behind the original footrest mountings that are found on all aluminium frame models 2008 to 2021.
Sold as a pair of dirt-deflectors along with a set of 4 (2 + 2) mounting bolts for the footrest brackets. Fitting instruction supplied. | Meca System Fuel Injector Guard for TM Racing 2-Stroke 250Fi/300Fi (TPi) Models 2019-2021.
Profiled from stainless steel, this part is designed to protect the left hand side 'exposed' fuel injector on the cylinder.
Part No' T-8011 |
